ASUS P6X58D Premium - LGA 1366 - X58 - DDR3 - USB 3.0 SATA 6 Gb/s - ATX Motherboard Review
ASUS P6X58D Premium - LGA 1366 - X58 - DDR3 - USB 3.0 SATA 6 Gb/s - ATX Motherboard Feature
- True ASUS 16+2 Phase Power Design Unprecedented Innovation with the Best Quality Component for Best Performance
- USB 3.0 & SATA 6Gb/s RAID Support -Fully unleash USB 3.0 & SATA 6Gb/s bandwidth
- ASUS TurboV New OC Records with Real-Time Super-precise Tunings
- Stack Cool 3+ Effective Fanless Heat Dissipation at 0dB. Up to 20°C(36°F) Cooler!
- ASUS Fanless Design - Heat-pipe solution

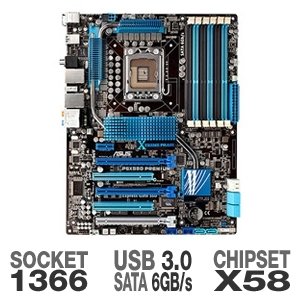

ASUS P6X58D Premium - LGA 1366 - X58 - DDR3 - USB 3.0 SATA 6 Gb/s - ATX Motherboard Overview
First X58 platform motherboard to be ready for the next generation storage and peripheral devices, the ASUS P6X58D Premium can fully unleash TRUE USB 3.0 & SATA 6 Gb/s bandwidth to speed up file transfers by up to 50%.
The ASUS P6X58D Premium motherboard features Intel's X58 chipset supporting the latest LGA 1366 processors, including the newest Intel 32nm 6-core processors. Its DDR3 Dual-channel Memory Architecture at speeds of up to 2000MHz (overclocked) offers exceptional performance to gamers and enthusiasts.
ASUS Xtreme Design offers the best performance, safety and reliability through ASUS exclusive innovations such as Xtreme Phase and TurboV. The 16+2 Xtreme Phase and Stack Cool 3+ specially designed PCB layers provide a cool and stable platform for breaking the latest overclocking records. For your daily tasks, the P6X58D Premium also proves to be an amazingly reliable motherboard for your high performance needs.
With the evenly spread out 3x PCIe 2.0 x16 slots, you can enjoy the best in multi-GPU graphics technology with NVIDIA 3-Way SLI or ATI Quad-GPU CrossFireX while ensuring optimal airflow between the graphics cards.
Featuring ASUS' exclusive TurboV technology, you can now overclock and boost the system performance in real-time with ease using the micro-interval (0.02v) adjustments of voltages. Break new world records or just get the performance you need for the latest games you want to play. By selecting saved settings in profiles, you can quickly boost your overall system performance to match the speed needed for your demanding applications, on-the-fly.
 View larger. |
 View larger. |
Key Features
- ASUS Xtreme Design featuring Xtreme Phase, Express Gate SSD and Stack Cool 3+
- 16+2 Xtreme Phases provides efficient cooling and increased reliability for better overclocking margins*
- TurboV tool with super-precise voltage tuning intervals for precise and optimal overclocking settings - in real-time
- Stack Cool 3+ provides passive cooling with up to 36°F cooler through its 2 ounce copper PCB layers and two additional PCB layers
- Express Gate SSD for instant access to Internet and multimedia enjoyment (5 seconds from cold boot)
- TRUE SATA 6 Gb/s and USB 3.0 throughput allows for transfer of files up to 50% faster
- MemOK! automatically troubleshoots memory default profile and boots from safe-mode
- Ready for next-generation 32nm 6-core Intel LGA 1366 processors
- 3-Way SLI / Quad-GPU CrossFireX support bringing you the best in Multi-GPU graphics technology
- Triple Channel DDR3 2000 (overclocked)/1600/1333/1066 MHz support for taking performance to the next level
- Dual Gigabit Ethernet ports allowing teaming function for doubling the bandwidth
|
Learn More
To Get the Best, Start with Xtreme Design
 | ASUS True 16+2 Phase Power Design The P6X58D Premium is built based on the groundbreaking 16+2 phase VRM design. The 16+2 phase power design, 16-phase for vCore and extra 2-phase for Memory controller inside CPU, can provide the highest power efficiency, and hence generates less heat to effectively enhance the overclocking capability. With the high quality power components such as low RDS (on) MOSFETs, Ferrite core chokes with lower hysteresis loss and 100% Japan-made high quality conductive polymer capacitors, ASUS 16+2 phase VRM design also ensure longer component life and minimum power loss. Up to 36°F (20°C) Cooler - Stack Cool 3+ Stack Cool 3+ is a fanless cooling solution offered exclusively by ASUS. By embedding 2 ounces of copper in its PCB and also extra layers of PBC, it effectively and noiselessly transfers heat generated by the critical components to the other side of the specially designed PCB (printed circuit board) for effective heat dissipation - making temperatures cooler by up to 36°F/20°C. 32nm - 6-core Intel CPU Ready The P6X58D Premium is also ready for the next generation 32nm, 6-core Intel CPUs. With Xtreme Phases and the Stack Cool 3+ combined, you can expect an even lower system temperature and more performance from the new 6-core processors. |
TRUE USB 3.0 and SATA 6 Gb/s Performance
 | True SATA 6Gb/s Support Supporting next-generation Serial ATA (SATA) storage interface, this motherboard delivers up to 6.0Gb/s data transfer rates. Additionally, get enhanced scalability, faster data retrieval, and double the bandwidth of current bus systems. True USB 3.0 Support The first motherboard to be officially certified by the USB-IF to support USB 3.0 technology, the P6X58D Premium gives you the latest in peripheral connectivity standard for an ultra-fast data transfer at 4.8Gbps. Built to connect easily with next generation components and peripherals, USB 3.0 transfers data 10X faster and is also backward compatible with USB 2.0 components. With TRUE USB 3.0 and SATA 6 Gb/s, your ASUS P6X58D Premium motherboard can transfer movies, music, and backup files up to 50% faster. |
Quick and Super-Precise Tuning
 | Whether you are a first time overclocker or trying to break the next world record, you will appreciate the comprehensive yet simple to use overclocking tools that comes with the P6X58D Premium. Fitted with the super-precise TurboV program, you can easily boost your CPU and system performance - in real-time. This advanced overclocking tool provides micro-adjustment intervals for key components' voltages and frequency, allowing fine-tuning to be twice as precise than other solution. The easy to use interface provides tuning capability for the CPU PPL, NB, NB-PCIe, and DRAM voltages in 0.02v intervals. The extra fine adjustments is able to provide you with optimized performance while achieving rock solid stability. Once the desired overclocking settings have been achieved, you can save the settings into preset profiles for quick and easy switching between presets for instant overclocking or power saving. |
Warranty
The P6X58D Premium carries a 3 year limited product warranty. ASUS product warranty is based on the serial number printed on the box.What's in the Box
The entire ASUS P6X58D Premium package contains the following:Specifications: P6T/P6X58D Series
| Model: | P6X58D Premium | P6X58D-E | P6T |
| CPU Socket | LGA 1366 for Intel Core i7 Processor Extreme Edition/Core i7 Processor | LGA 1366 for Intel Core i7 Processor Extreme Edition/Core i7 Processor | LGA 1366 for Intel Core i7 Processor Extreme Edition/Core i7 Processor |
| Chipset | Intel X58 /ICH10R | Intel X58 /ICH10R | Intel X58 /ICH10R |
| Memory | 6 x DIMM, Max. 24GB DDR3 2000 (O.C.)/1600/1333/1066 MHz Non-ECC, Un-buffered Memory - Triple channel memory architecture | 6 x DIMM, Max. 24GB DDR3 2000 (O.C.)/1600/1333/1066 MHz Non-ECC, Un-buffered Memory - Triple channel memory architecture | 6 x DIMM, Max. 24GB DDR3 2000 (O.C.)/1600/1333/1066 MHz Non-ECC, Un-buffered Memory - Triple channel memory architecture |
| Power Phase | 16+2 Xtreme Phase | 16+2 Xtreme Phase | 8+2 Xtreme Phase |
| PCIe 2.0 x16 Slots | 3 (at x16/x8/x8 or x16/x16/x1 mode) | 3 (at x16/x8/x8 or x16/x16/x1 mode) | 3 (at x16/x16/x4 mode) |
| Multi-GPU | ATI Quad-GPU CrossFireX / NVIDIA 3-Way SLI | ATI Quad-GPU CrossFireX / NVIDIA 3-Way SLI | ATI Quad-GPU CrossFireX / NVIDIA 3-Way SLI |
| Gbit LAN | x2 with AI NET2 | x1 with AI NET2 | x1 with AI NET2 |
| Audio | 8-ch HD, DTS | 8-ch HD, DTS | 8-ch HD, DTS |
| Storage | 2x SATA 6 Gb/s 6x SATA 3Gb/s 1x eSATA | 6x SATA 3Gb/s 1x eSATA | 6x SATA 3Gb/s 2x SATA 3Gb/s with Drive Xpert 1x eSATA 1x UltraDMA 133/100/66 |
| USB | 8x USB 2.0 + 2x USB 3.0/2.0 | 8x USB 2.0 + 2x USB 3.0 | 12x USB 2.0 |
| 1394a Firewire | 2 ports | 2 ports | 2 ports |
| Features: | |||
| TurboV | Yes | Yes | Yes |
| Turbo Key | No | No | No |
| Xtreme Phase | Yes | Yes | Yes |
| Express Gate | Yes (SSD, 5 second start-up) | Yes | Yes |
| MemOK! | Yes | Yes | Yes |
| EPU | Yes | Yes | Yes |
| Stack Cool 3+ (2+2oz) | Yes | -- | -- |
| Stack Cool 3 | -- | Yes | Yes |
